Product Summary

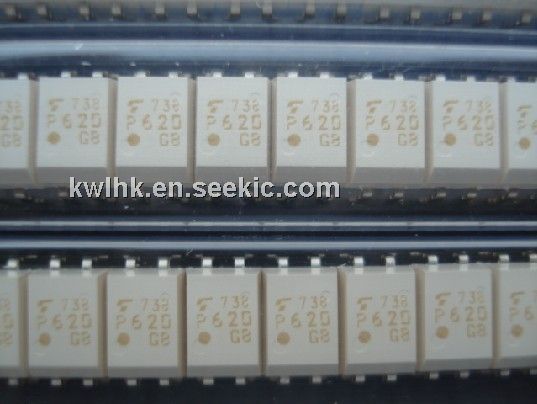

The p620 is an optically coupled isolator consist of two infrared light emitting diodes connected in inverse parallel and NPN silicon photo transistor in space efficient dual in line plastic package. It is ideal for: (1)Computer terminals; (2)Industriasystems controllers; (3)Telephone sets, Telephone exchangers; (4)Signatransmission between systems of different potentials and impedances.
Parametrics
P620 absolute maximum ratings: (1)Storage Temperature: -55°C to + 125°C; (2)Operating Temperature: -55°C to + 100°C; (3)Lead Soldering Temperature (1/16 inch (1.6mm)from case for 10 secs): 260°C; (4)Forward Current: ± 50mA; (5)Power Dissipation: 70mW; (6)Collector-emitter Voltage BVCEO: 55V; (7)Emitter-collector Voltage BVECO: 6V; (8)Power Dissipation: 150mW.
Features
P620 features: (1)Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&ree- add SMT&R after part no.; (2)High Isolation Voltage (5.3kVRMS ,7.5kVPK ); (3)AC or polarity insensitive input; (4)Alelectricaparameters 100% tested; (5)Custom electricaselections available.

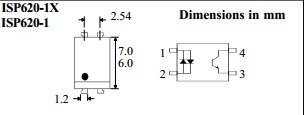

Diagrams
